Features

•Flexible, low loss cable
•RoHS Compliant

Technical Specifications

•Min. Bending Radius: 38.1 mm
•Max. Pulling Tension: 1750 N
•Crush resistance of cable (load of 700N): < 1 %
•Admissible Ambient Temperature: -40℃ to +85℃ (-40°F to 185°F)
•Characteristic Impedance: 50 ±3 ohm
•Capacitance: 77 ±3 pF/m
•Velocity Ratio: > 87 %
•DC Resistance Centre Conductor: < 4.60 ohm/km
•DC Resistance Outer Conductor: < 5.40 ohm/km
•Outer Jacket Material: PE
•Tensile strength: ≥ 16.2 N/mm²
•Adhesion: 20N to 80N @ 50mm

Box Contents

•1 x 1000-ft Spool

Weights & Dimensions

Datasheets

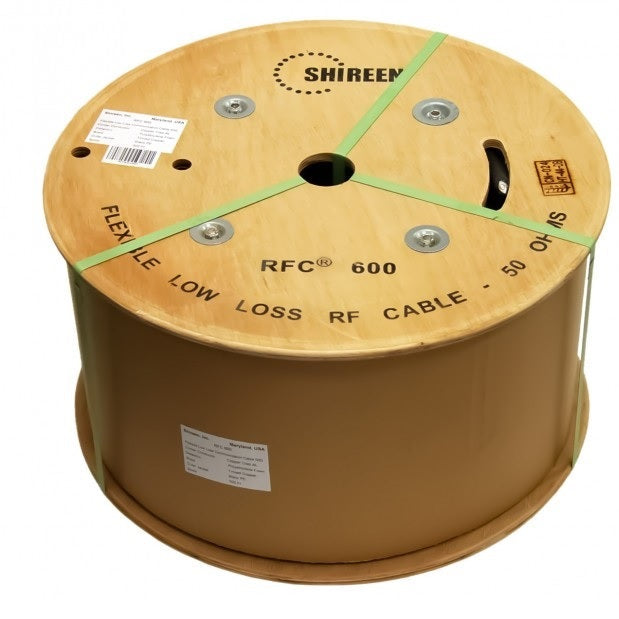

Shireen RFC 50 Ohms LMR Equivalent Coaxial Cable -1000' Spool

Name: Shireen RFC 50 Ohms LMR Equivalent Coaxial Cable -1000' Spool
Brand: Shireen
SKU: WIRFC600-1000
Price: 1995.92 CAD
Availability: InStock

Vendor: Shireen

SKU: WIRFC600-1000

Vendor SKU: RFC600-1000

Shipping calculated at checkout.

Special Order Item

Manufacturer's Warranty: 10-Year

Shireen’s latest RFC series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from competitors.

Special order items do not qualify for same day shipping.
No returns of exchanges on Special Order Items.
Pricing is subject to change.

Oversized Items will require special shipping. We will contact you to finalize shipment.
Read our Special Order Policy
