Features

•Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels
•Suitable applications include IBDN System 2400 and 4800, TIA Category 6+, ISO Class E & 1000 BASE-T

Technical Specifications

•Footprint/Type: MDVO-Style
•Plug / Jack Compatibility: RJ45, RJ11
•Connector/Hardware Retention: 20 lbs
•Plug/Connector Retention: 11.250 lbs
•Operating Temperature Range: -10°C To +60°C
•Front Connection: Lead Frame Copper Alloy with 50u inch Gold over Nickel
•Rear Connection: IDC Copper Alloy with Nickel Plating
•Connector Body Plastic: UL940V-0
•Wiring Scheme: T568A/B
•Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination Station

Box Contents

•10 x Belden CAT6+RJ45 MDVO-Style Modular Jack

Weights & Dimensions

Datasheets

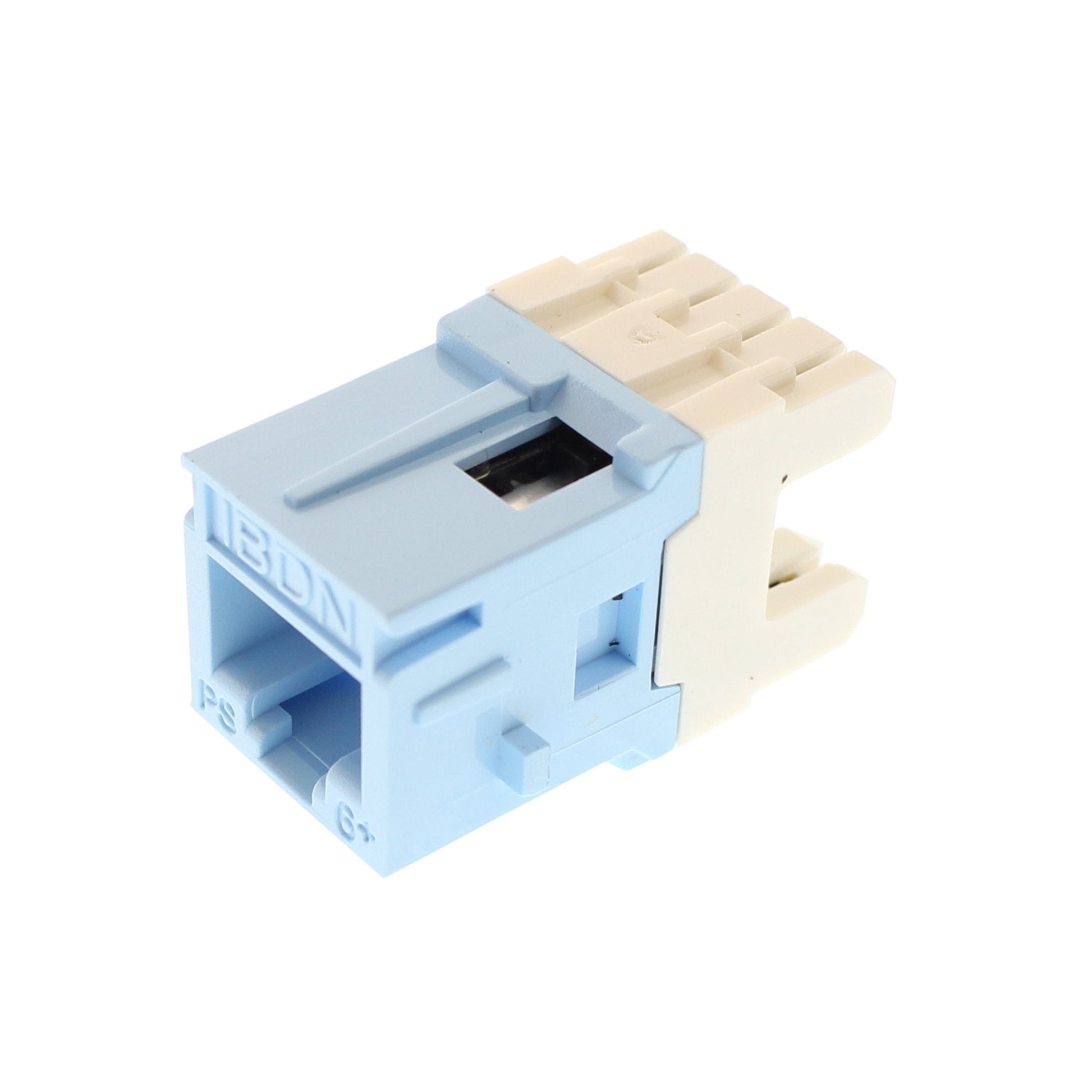

Belden CAT6+ RJ45 MDVO-Style Modular Jack

Name: Belden CAT6+ RJ45 MDVO-Style Modular Jack
Brand: Belden
SKU: WPAX101071
Price: 28.41 CAD
Availability: InStock

Vendor: Belden

Type: special order item

SKU: WPAX101071

Vendor SKU: AX101071

Shipping calculated at checkout.

Special Order Item

Manufacturer's Warranty:

The CAT6+ Modular Jack is a punch down UTP connector based on a patented Encapsulated Lead Frame technology that ensures excellent long-term reliability as well as extremely stable transmission performance. They are designed to be used within the Belden IBDN 4800, 3600 and 2400 Systems.

Special order items do not qualify for same day shipping.
No returns of exchanges on Special Order Items.
Pricing is subject to change.

Oversized Items will require special shipping. We will contact you to finalize shipment.
Read our Special Order Policy

Features

•Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels
•Suitable applications include IBDN System 2400 and 4800, TIA Category 6+, ISO Class E & 1000 BASE-T
